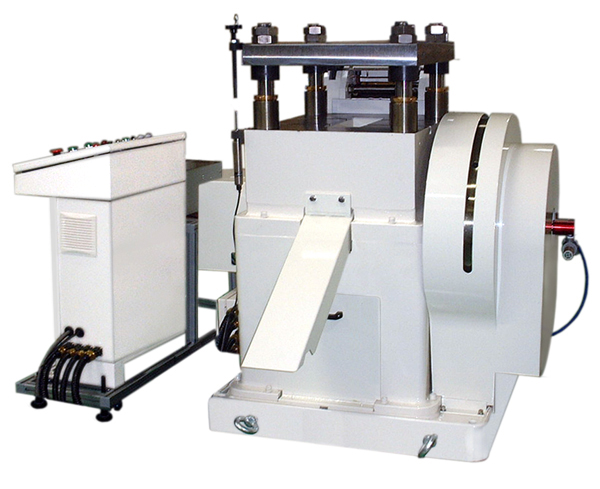

Model:
WDM-40H Dieing press
machine: View from
the flywheel
(Equipped with CNC
roll-feeder and full options)
( high speed precision press machine )
Model:WDM-40H
Dieing press machine:
View from the operating panel
(Equipped
with CNC roll-feeder and full options)
|
This dieing machine is a (rod)
pull-down stroking type with four
highly rigid precision post-guides
and with the motor located at the
bottom of the machine.
The die is located in between the
four precision post-guides to
prevent any effects on the die from
eccentric load, making it an optimal
machine for highly precise pressing
operations.
The machine is low in height and the
accuracy of the machine and bottom
dead-point has passed the highest
JIS (Japanese Industrial Standards)
class of the Japanese Standards
Association (JSA).
The “precision
high speed
4-post press and pull-down
mechanism” is the main
characteristic of the machine,
preventing any deflection in the
frame (a common problem in
conventional C-frame machines),
allowing it to feed material in a
consistent and accurate manner, and
making it a very versatile machine
suitable for high-speed,
high-precision feeding operations
which also require strict accuracy.
<<
適応例
>>
● High
value-added press-processing of
precision electronic and electric
components which need to be
processed with high accuracy and at
high speeds.
●
Being a compact machine, it is
possible to maintain space above and
beside the machine when automating
welding processes in progressive
dies for automatic pressing
operations.
●
For cases
where conventional press machines
(with motors at the top of the unit)
cannot be used for automated
pressing lines due to motor oil
dripping down from above.
●
Burr-free press-processing of
materials which are particularly
susceptible to burrs and cannot be
processed with standard power-press
machines, like paper.
● Simultaneously press-processing
multiple rows of sticky materials
such as zinc, etc.
● Optimal for press-operations in
between shearing lines
●
Pressing and punching unbaked, soft
and difficult-to-process electronic
sheets and other ceramic materials.
●
High-precision pressing of film
material.
●
High-precision pressing, stamping
and punching of thin plastic plates
and other plastic materials.
●
Press-processing building materials,
including earthquake-resistance
materials.
●
When the product accuracy may be
affected by the eccentric load
during long progressive press
processes.
●
High-speed, high-precision
consecutive processing of cores for
servo motors and other motors.
●
High-speed, high-precision
consecutive processing of cores for
EI transformers.
● High-precision coining, minting
and pressing processes for coins. |
|
|
● |
We accept customer requests
regarding items such as number of
strokes, stroke lengths, shut
heights, punching hole sizes,
processing sizes and bolsters, etc.
|
|
● |
We also accept custom orders
regarding the lengths between the
four posts. |
|
|
型 式 (Model)
|
WDM-20
Dieing Machine
(Press-Machine) |
WDM-40
Dieing Machine
(Press-Machine) |
WDM-60
Dieing Machine
(Press-Machine) |
PDM-80
Dieing Machine(PressMachine) |
|
20 |
20H |
40 |
40H |
60 |
60H |
80H |
|
Capacity |
ton |
20（200ＫＮ） |
40（400ＫＮ） |
60（600ＫＮ |
80（800ＫＮ） |
|
Standard stroke
length |
mm |
30 |
30 |
30 |
30 |
30 |
30 |
40 |
|
Stroke per min (
Standard ) |
SPM |
150 |
125～500 |
150 |
125～500 |
150 |
120～470 |
120～400 |
|
Shut height
length ( Standard ) |
mm |
205 |
205 |
235 |
235 |
235 |
235 |
300 |
Adjust of ram (
Standard )
（Adjust ram length） |
mm |
30 |
30 |
30 |
30 |
30 |
30 |
40 |
|
Open height |
mm |
235 |
235 |
265 |
265 |
265 |
265 |
340 |
Punting hole size
( bed ：bolster hole ) |
mm |
200*100 |
200*100 |
350*130 |
350*130 |
350*130 |
350*130 |
400*200 |
|
Motor power |
kw |
1.5 |
2.2 |
2.2 |
3.7 |
3.7 |
5.5 |
15 |
|
Operation |
- |
Continuous,
Single, and Inch-feeding (Jog) |
|
Lubricator |
- |
Automatic
oil-refilling mechanism |
|
Clutch |
- |
Air clutch and
brakes |
|
Footprint |
mm |
1065*913 |
1310*1000 |
1760*1200 |
|
機械寸法 ( machine
figure ) |
mm |
1065*1120*1220(L*W*H) |
1310*1250*1415(L*W*H) |
1760*1510*1650 |
◎ The shut height is the distance
from the top of the bolster to the
bottom of the ram (also
called a “Top plate of the machine”)
with stroke down and adjustment up.
◎ The
open height is the distance from the
top of the bolster to the bottom of
the ram with stroke up and
adjustment up.
◎ For
dieing machines, the upper part of
the frame corresponds to the unit
referred to as a “bolster.”
◎ A
special T-shaped groove bolster can
also be added as an option, only at
order placement of the machine.
|
|
◎The
“H” models refer to
models with continuously
variable transmission
(CVT) specifications.
Models other than
“H-types” are constant
rotating types.
|
|
|
●Dieing
Machine
details and
specifications may be
modified by TOSCOM at
any time without prior
notice. |
|
|
|
