TOSCOM Co., Ltd.(Japan) is a specialized manufacturer of the large size exact feed CNC roll-feeder for press working!

Toscom Co.,Ltd. : Toscom Company: (Japan)

Roll feeder – Large model

　
■ All models are equipped with highly rigid and durable frames.

■ Using our know-how on precision pressing machines, we have succeeded in developing a highly precise strong pulling mechanism by designing the gears to have absolutely no gaps between the teeth.
■ Built based on our design techniques and experience of other dieing machines, this machine is unequalled in accuracy by any other feeding machine.
■ This can be installed onto all pressing machines, including power presses, straight-side presses, and dieing machines.

　

Type: 650LA-H (Material feeding machine: Feeder)

CNC roll feeder (NC roll feeder for press machine)

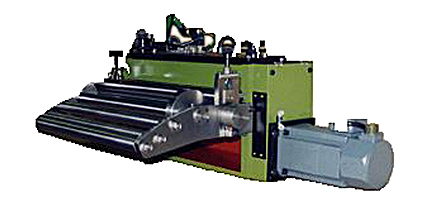

Type: 750RA-H (Material feeding machine: Feeder)

CNC roll feeder (NC roll feeder for press machine)
Type: 1200LA-H (Material feeding machine: Feeder)

CNC controller (NC controller for roll feeder)

■ A sophisticated AC digital servo control panel is included with the feeder.
■ Please refer to the [Product composition] page of the CNC control panel specifications.

Feeding machine specifications	ORBIT-EX II (ORBIT EXCELLENCE II)
Model	500L(R)	600L(R)	750L(R)	950L(R)	1100L(R)	1200L(R)
Roller width: Inserting material width (mm)	500	600	750	950	1100	1200
Material thicknesses	Corresponds for 0 ~ 5.5mm		Corresponds for 0～6.0mm
Maximum following rotating speed (SPM)	700SPM		500SPM
Releasing method	Solenoid valve air-releasing method
Material inserting method	Switch-type roller-lifting method
Material inserting method (Different for each model)	Slanted material guide
Roller pressure adjustment (Material pressure adjustment)	Spring pressurizing and stepless air adjustment type
Feeding material pressure adjustment system	Stepless pressure setting type to set the pressure to correspond with the thickness and type of feeding material.
Tractive force (kg/f)	138	183	275		641	645
Machine weight	Approx.80kg	Approx.92kg	Approx.172kg	Approx.203kg	Approx.223kg	Approx.245kg
Equipped with CNC controller	ORBIT computer with AC digital servo-controller (Made by TOSCOM)

■Features of the material feeding machine (CNC roll feeder)

● [L]= The AC servo motor is located on the left side of the machine (when viewed from the material feeding side).[R] means the motor is located on the opposite side.

● [A]: Solenoid valve air-releasing method,[M]: Mechanical cam releasing method

● [H]: Standard high-speed feeding model

　

● The type of material inserting guide can be selected from either a slanted type, parallel type, or a type with a material reverse-direction feeding prevention mechanism (special specification) based on the application.　

● The releasing type in the diagram is the solenoid valve releasing method. (Mechanical releasing types also available)

● The NC feeding machine (roll feeder) comes equipped with CNC controller.

● The construction of the gears between the motor and upper/lower roller axes are based on TOSCOM’s unique backlash-free gears [Patent currently being filed]

● No gaps will occur between the gears even after long-time use, making high-precision feeding possible for years.

● The mainframe of the machine is a highly rigid structure to achieve highly precise feeding operations. (The frame is not a press-bending type frame.)

● The speed reducer is not a timing-belt type, but a high-accuracy gear type to ensure that the torque is transmitted without fault.

●Machine details and specifications may be modified by TOSCOM at any time without prior notice.
