Control panel specifications
|
ORBIT-EX II
(ORBIT EXCELLENCE II) common specifications |
|
Feeding pitch
range |
０～６５５３．５００ mm
（MAX) |
|
Minimum setting
range |
０．１～０．００１ mm |
|
Repeating feeding
accuracy |
0～50ｍｍ：±0.02
mm 50ｍｍ～100ｍｍ：±0.04
100ｍｍ～ ±0.06ｍｍ |
|
Maximum control
capacity: Following rotating speed (SPM) |
1000SPM or more
(This may differ depending on the selected
model) |
|
Continuous
press-feeding variable-speed mode |
Standard specifications: 6-speed (Ultra super
high-speed specification: Total 12 speeds)
|
|
Random setting
for the continuous feeding starting angle |
● The starting angle for feeding will depend
on the type of die and therefore can be
freely set.
|
|
Automatic timing
adjustment for the continuous feeding start
angle |
● The feeding timing angle, based on the
rotational speed, will be automatically
calculated with the microcomputer.
● The
cam angle is automatically adjusted based on
the rotating speed range (low ~ high). No
confusing adjustments need to be done!
|
|
Random setting
for the releasing start/end angle |
● There are no restrictions for the
releasing angle based on the different
heights of the dies.
|
Continuous
feeding signal interfacing
Releasing signal interfacing
(Highly advanced machine which can be easily
connected and started) |
● A signal is input from the idling contact
of the press machine rotary cam.
●
Connection can be simply performed by
connecting two wires for the starting
operation.
● The rotating sensor for
input signals and the press rotating axis do
not need to be interlocked.。
● Connection
with the micro-switch of the press machine
rotary cam is possible.
● Connection with
the digital cam and open collector of the
press machine is also OK
● For mechanical
releasing types, the ram on the press
machine will hit the releasing arm to
release the material.
|
No troublesome
accelerating and decelerating settings
(Easily operated highly advanced machine) |
● The microcomputer will do all the
calculating in accordance with each
continuous feeding speed.
● The
microcomputer will automatically perform all
calculations and setting the accelerating
speed for feeding is unnecessary.
● The
microcomputer also do all of the difficult
calculations for different accelerating
speeds for different material thicknesses.
|
Material feeding
mode is designed to best suit the pressing
operation
（Feeding directions (Pushing/Pulling) can be
switched with a push of a button) |
●
Total 8 modes:
：Press
interlocked, automatic feeding (Both forward
and backward directions can be selected)
● Manual feeding: Pitch-length feeding
(“Fwd” / “Bwd”)
● Manual feeding:
Continuous jog-feeding (“Fwd” and “Bwd” in
the inching speed)
● Manual feeding:
Continuous jog-feeding (“Fwd” and “Bwd” in
the inching speed)
◎ The user
only needs to set the desired feeding pitch
and speed with the rotary-type switch, and
the microcomputer will perform all of the
calculations and settings.
|
|
Safety measures |
● Servo amplifier overload relay output and
warning/alarm display lamp
● Servo unit
automatic stopping mechanism when machine
overheat is detected
● Data input
warning/alarm display lamp
● Equipped
with connector for inputting an external
instant stop resetting signal
|
|
Output for
interlocking with other machines |
Feeding complete
relay output and display lamp |
|
Controlling
method |
ORBIT computer
with AC digital servo-controller (Made by
TOSCOM) |
|
Power supply |
AC 200V ~ 230V (3-phase, 1-phase) |
|
CNC control panel size |
Height × Width ×
Depth = 20 × 43 × 25~35 (cm) |
|
Control panel
after-sales service |
The hardware and software are all built (design
~ manufacture) by TOSCOM, and thorough
after-sales service is provided. Also, control
panels can be purchased from TOSCOM (Sold
separately).
|
● Machine details and specifications may be
modified by TOSCOM at any time without prior
notice.
●
The control panel
is all built by TOSCOM, and thorough after-sales
service is provided. |

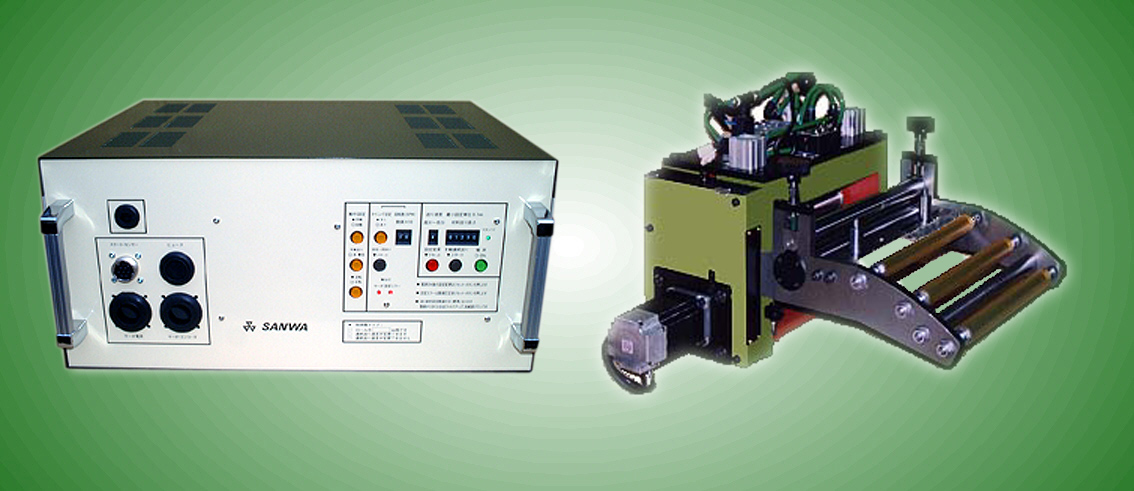

CNC
roll feeder set composition
